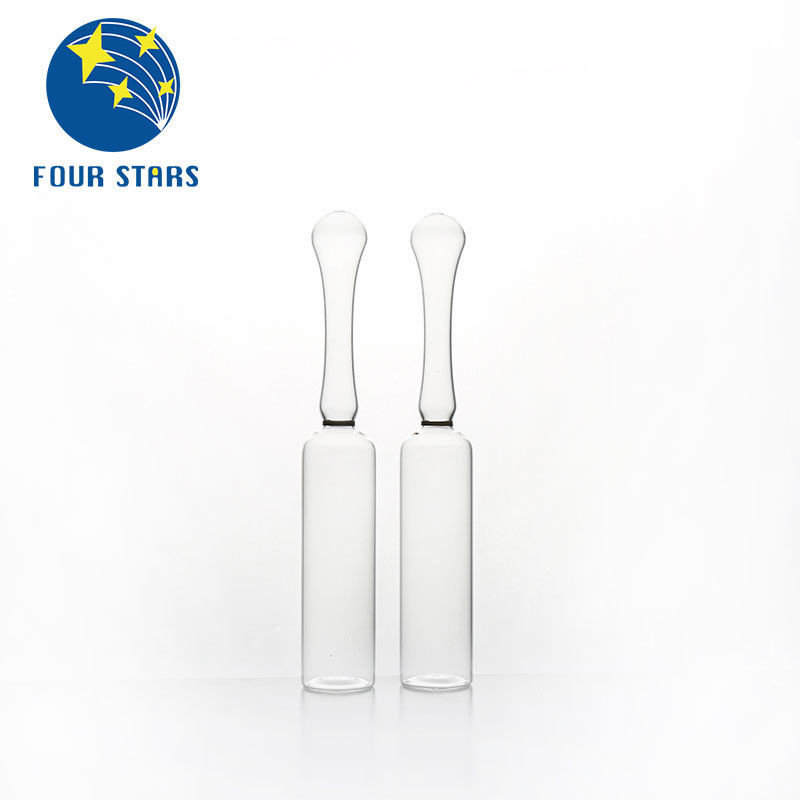

Clear And Amber Empty Glass Ampoules Easy Open End

Clear And Amber Empty Glass Ampoules Easy Open End

Product

It refers to a rigid fusible glass containers for injections containing drugs, vaccines, serum or the like; it is Latin ampulla transliteration. Commonly used are straight neck and curved neck. The capacity is generally 1-25ml. Commonly used in injections, it is also used for packaging oral. However, it did not succeed, because the consumer is difficult to open and prone to accidents. Historical ampoules containing blood samples from the deceased

Packaging frangible ampoule ampoule ring and two types of color dot frangible ampoule. Color frangible ampoule ring expansion coefficient higher than twice the low-melting glass ampoule, the ampoule neck is formed after solidification of the melt in the ring. When subjected to an external force, the glass will break and difficult to produce. Bending the tip easily folded ampoule neck may have a slight recess, the central depression has a color point of a standard diameter of 2mm. At present, most ampoules are colorless, which helps to check the transparency of the liquid. Screening agents may be required to use an amber glass ampoule. Amber UV filters can be used for photosensitive drugs. Amber ampoule containing iron oxide. A small amount of iron oxide may penetrate into the product. If the composition of the product may contain a catalytic iron ions, can not be used amber glass containers.

Common problems and solutions in ampoule filling and sealing edit voice

Sealing injection ampoule and sealing general pull top sealing methods. The finished product produced by the former method has the advantages of smoothness, firmness and tight top. However, in the actual application process, many factors will affect the quality of the filling ampoules, it is necessary to discuss the potting operation. Xiaoshan Qianjiang Pharmaceutical Machinery Plant LSAG-III type filling and sealing machine 1-2ML drawing on filling injection 2ml common problems, causes and solutions or improve follows

1 Bubble head That is, obvious big bubbles are formed on the top of the ampoule after melting and sealing, which is easy to break. Causes: the drawing flame is too strong; the tempering time of the ampoule after drawing is too long; the bottom of the drawing clip is slightly lower than the flame horizontal centerline, although it can be sealed, it is easy to form a small bubble. Solution: Weaken the flame intensity of wire drawing; shorten the tempering time of the ampoule after wire drawing; adjust the distance between the wire drawing clamp and the horizontal centerline of the flame to the normal distance.
2. Collapsible head, that is, the top of the ampoule forms a depression after being melt-sealed. Cause: The ampoule first forms a bubble during the drawing process and then cools and shrinks; the heating flame is too small to dry some tiny water vapor on the wall of the ampoule. These low-temperature water vapor make the newly formed top arc of the ampoule cold and shrink and become deflated. head. Solution: Treat it according to the method of solving the bubble head; strengthen the heating flame to heat the neck of the ampoule to make the tiny water vapor evaporate as soon as possible. 1.5 Broken head means that the top of the ampoule is not sealed. Causes: mechanical reasons; excessive foaming; excessive deflated heads. Solution: Adjust the distance between the wire drawing clamp and the horizontal centerline of the flame to the normal distance; deal with it according to the method of bubble head and flat head.
