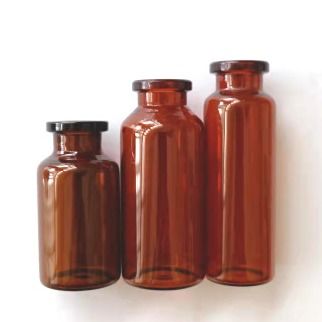

Small Amber Glass Tube Vials 2ml-50ml AQL Level

Amber Glass Tube Vials 2ml-50ml Liquid Or Power

Procuct

The purpose of eliminating permanent stresses in the glass article and structural imbalances. Glass is a poor conductor of heat. After molding, the inner surface layer and the temperature difference in the cooling process there. When the inner surface layer solidification thick, but there is the temperature difference stress relaxation. When the surface layer cooled to room temperature, this temperature difference will appear. Inner continued cooling shrinkage, tensile stress hampered by the surface, while the surface compressive stress, is permanent. Size and distribution of permanent stresses caused by thermal processing of the product portions are not uniform, and therefore, it will affect the strength of the glass product, and even break by itself due to stress concentration. Annealing can eliminate harmful tension inside the glass and prevent new stress from being generated. During annealing, heat the glass product or keep it to the annealing temperature after thermoforming, so that the original stress is relaxed and eliminated, and then slowly cooled to below the strain temperature. After the glass has completely entered the state of rigid body, the temperature difference between the inner and outer layers only produces temporary stress . Because certain performance and functional glasses (such as optical glass, thermometer glass) are within the transition temperature range, the huge viscosity makes the structure particles move slowly, so that its performance cannot reach the equilibrium state consistent with the temperature, and it will balance slowly during use. Produce performance changes, therefore, it must be kept at the annealing temperature for sufficient time

Features

◆ GMP production environment

◆ Online statistical control

◆ meet ISO size and appearance AQL level

◆ detecting camera parameters and critical size defects in appearance key 77

◆ Each product can be traced to the time of delivery (DD-MM-YY), shift, machine and operator.

Belonging PYREX glass of borosilicate glass. Acid, water, corrosion resistance, thermal stability, chemical stability and good electrical properties, thus having chemical resistance, thermal shock resistance, good mechanical properties, temperature and other characteristics. Linear thermal expansion coefficient of borosilicate glass (also known as hard glass) was (3.3 ± 0.1) × 10-6 / K, so it was called "borosilicate glass 3.3." Is a special glass material having a low expansion, high temperature, high strength, high hardness, high light transmittance and high chemical stability. Because of their excellent properties, it is widely used in the field of solar energy, chemical, pharmaceutical packaging, electric light source. , Jewelry, and other industries.

principle

The purpose is to eliminate permanent stress and structural imbalance in glass products. Glass is a poor thermal conductor. After the product is formed, the surface layer and the inner layer will have a temperature difference during the cooling process. When the surface layer is solidified and the inner layer is viscous, the temperature difference exists but the stress relaxation does not exist. This temperature difference occurs when the surface layer is cooled to room temperature. , The inner layer continues to cool down and shrinks, which is hindered by the surface layer to produce tensile stress, and at the same time, the surface layer produces compressive stress, which is permanent. The size and distribution of the permanent stress caused by the thermal process in each part of the product will not be uniform, therefore, it will affect the strength of the glass product, and even break by itself due to stress concentration. Annealing can eliminate harmful tension inside the glass and prevent new stress from being generated.

We researched and developed the best energy-saving and environment-protecting technology in the world to produce Type I neutral borosilicate glass tubes, which is unique production technology in China to provide Type I neutral glass for pharmaceutical glass containers. We obtained national patent of invention and 2nd Science & Technology award of invention granted by the Ministry of Science & Technology. Our plan to build a production base for annually 100,000 tons of neutral borosilicate glass tubes are supported by National/province Development and Reform Commission.
